Features:

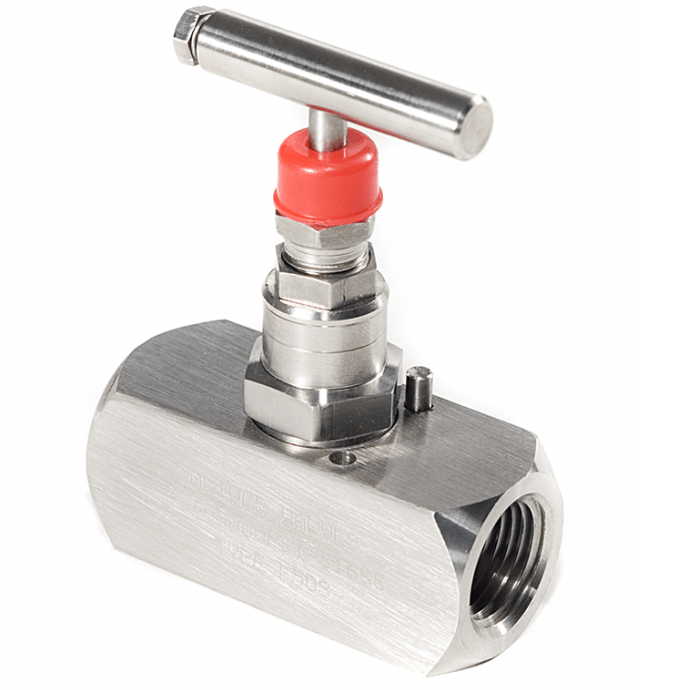

- Bar Stock Needle Valve Design with back seated Blow out Proof.
- Stem- Ground and thread rolled
- Hard seat with non-rotating stem tip with rotating stem tip regulating & Soft seat.
- Dust cap on bonnet pusher protects stem threads from external contamination. Packing and sealing are leak
- Tight for easy operation
- Low torque operating bar handle
- Extremely adjustable gland
- Bonnet lock pin fitted as standard for 6000 PSIG and for high pressure lock plate as per the design required.
Optional Features of Needle Valves:
- Pressure Temperature Chart: Maximum pressure 6000 psi (413 bar) at 100° C
- PTFE Packing: Maximum pressure 4000 psi (275 bar) at 200° C
- PTFE packing rated to maximum temperature of 200° C: Maximum pressure 6000 psi (413 bar) at 100° C
- Grafoil Packing: Maximum pressure 3300 psi (230 bar) at 450° C
Valve Types:
- Standard
- High Pressure
- Compression
- Multi-Port & Gauge
- Weld
- Hex
- Angle
Material Types:
- Stainless Steel
- Alloy Steel
- Carbon Steel
- Hastelloy
- Monel
- Duplex Steel
- 254 Smo
- 904l Stainless
- Inconel
- Titanium
- Brass
- Alloy 20
- Nickel 200/201
